108m跨度的双向正交悬索结构,石家庄国际会展中心索结构,这个结构牛!

  • 2026-03-18 02:13:23
108m跨度的双向正交悬索结构,石家庄国际会展中心索结构,这个结构牛!
点击“钢结构设计”关注公众号，了解更多内容！
本文转载自公众号：张卫全的结构设计探索

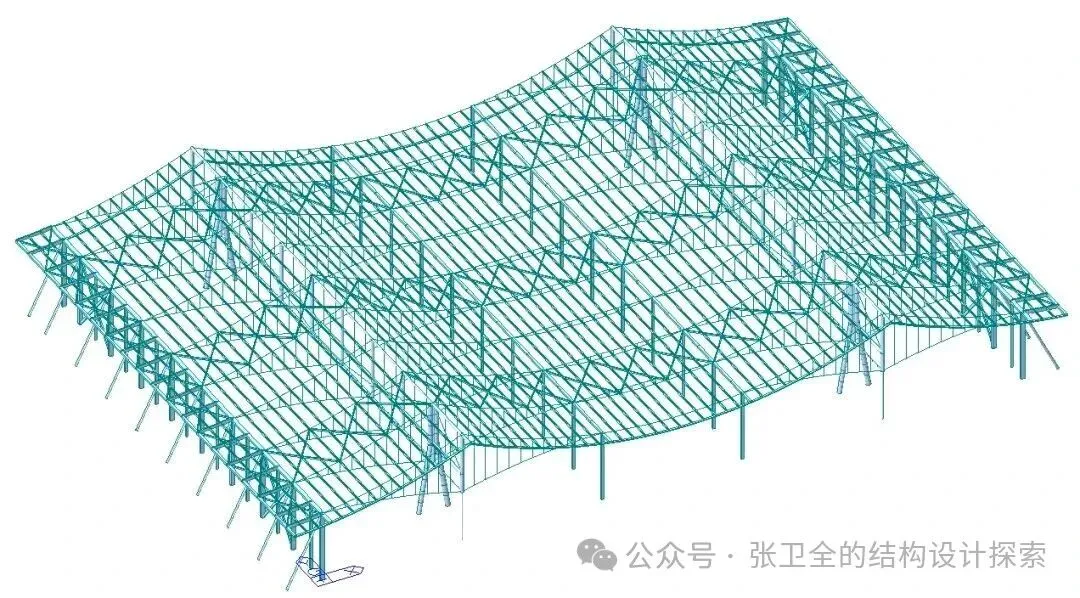

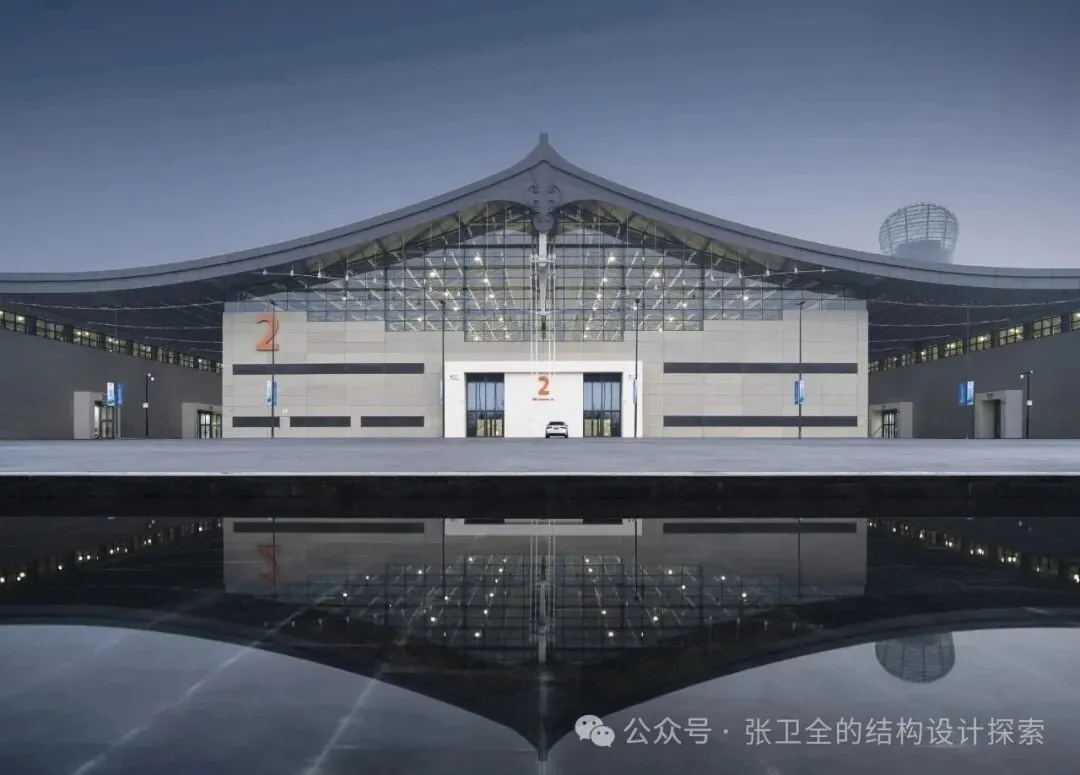

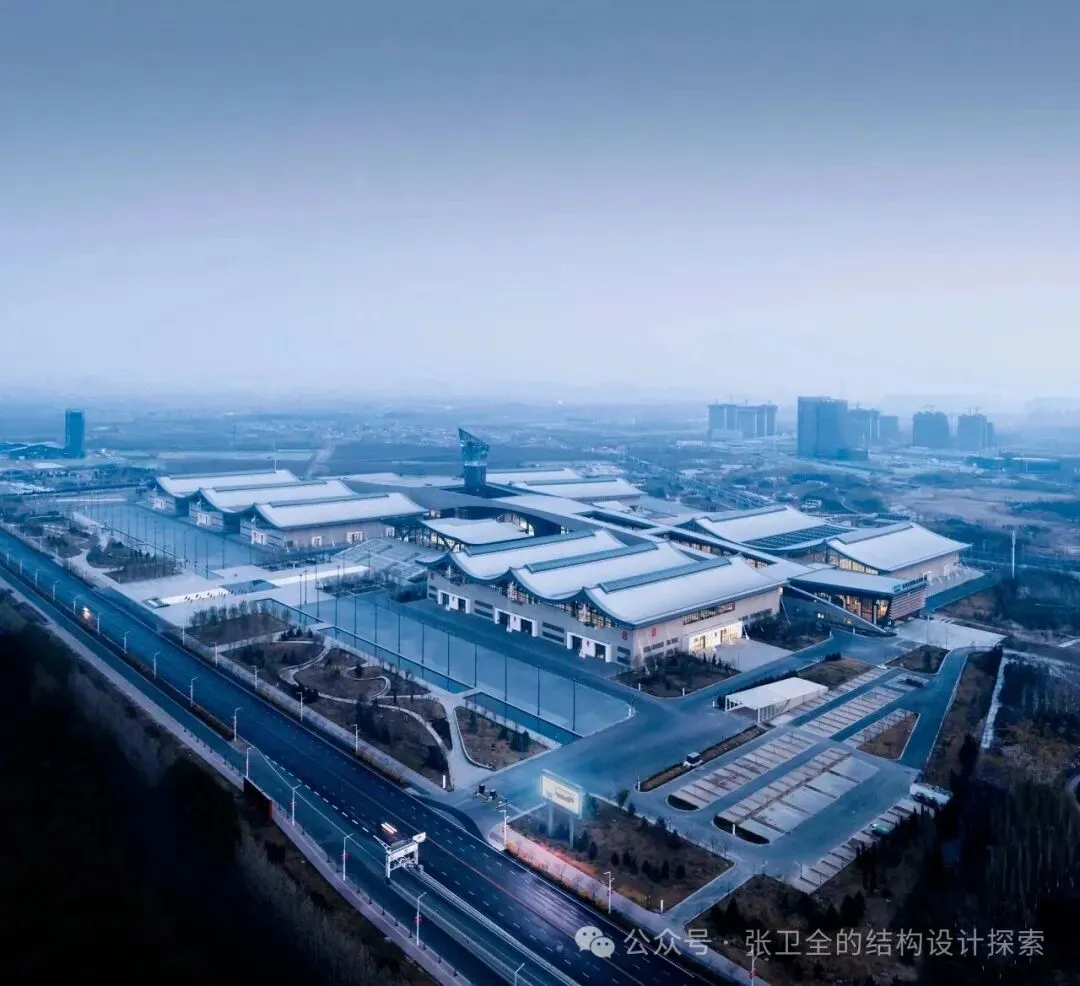

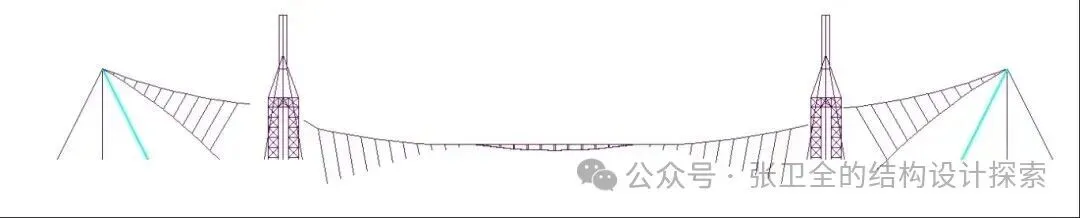

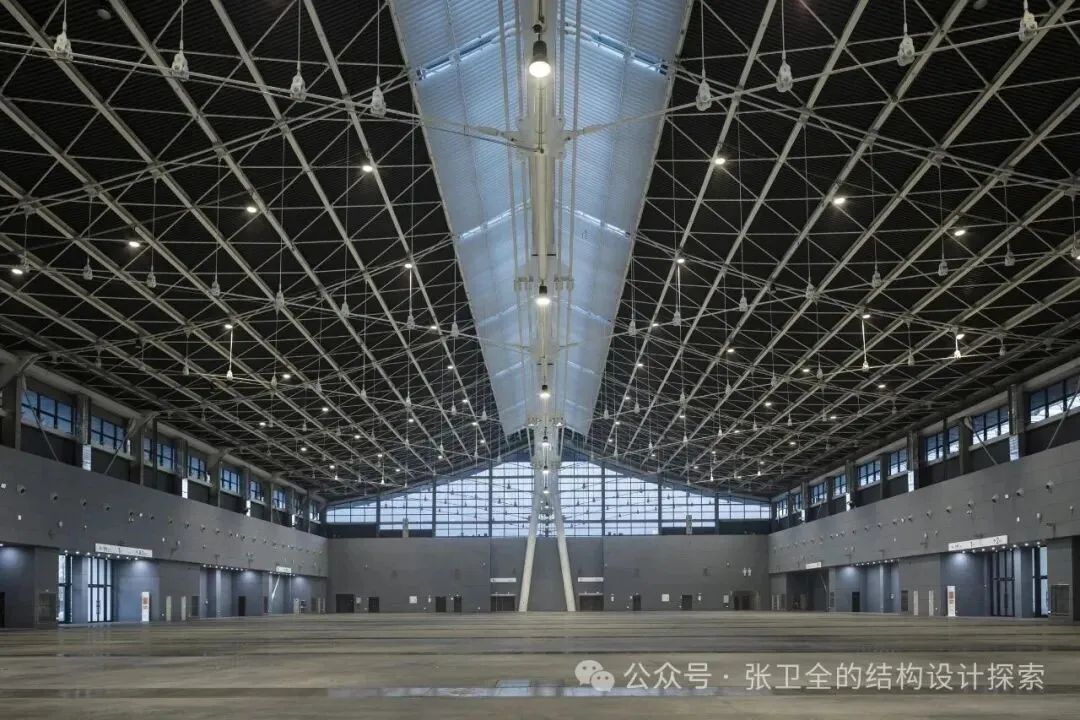

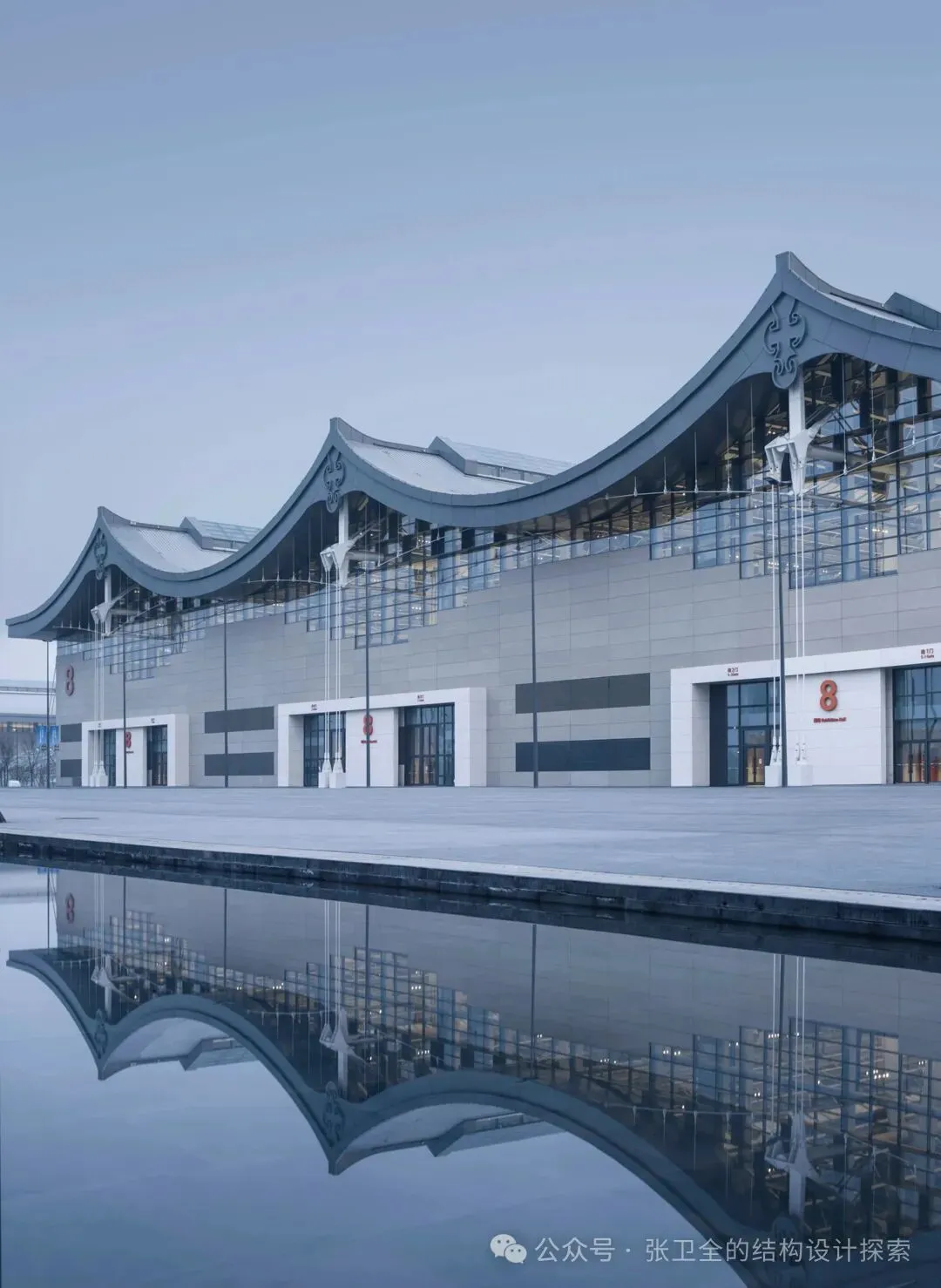

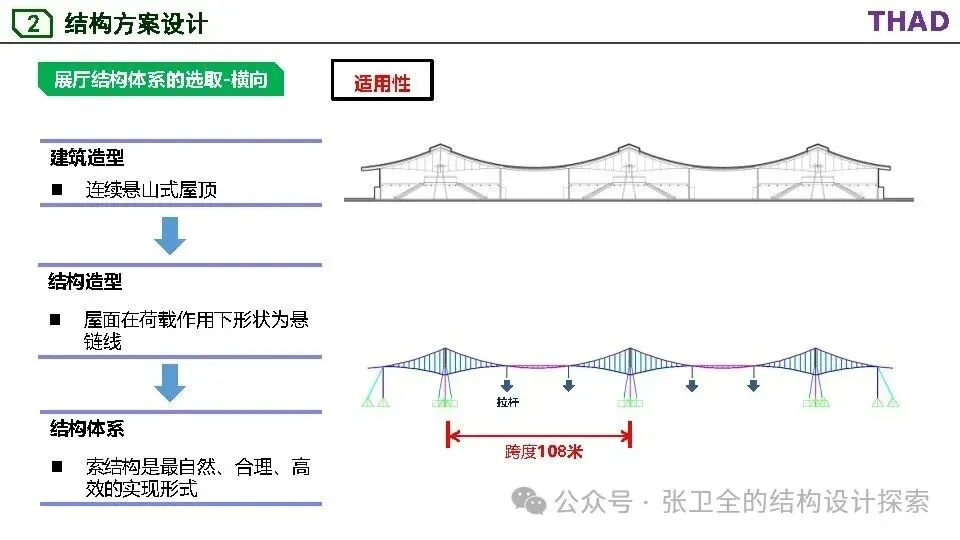

总建筑面积35.6万m2，展厅采用双向悬索结构，横向跨度108m，纵向跨度105m，在国内首次应用“多榀横向索，通过受压竖杆支撑于纵向索之上的双向正交悬索结构”。

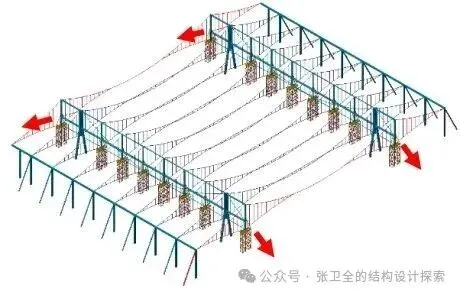

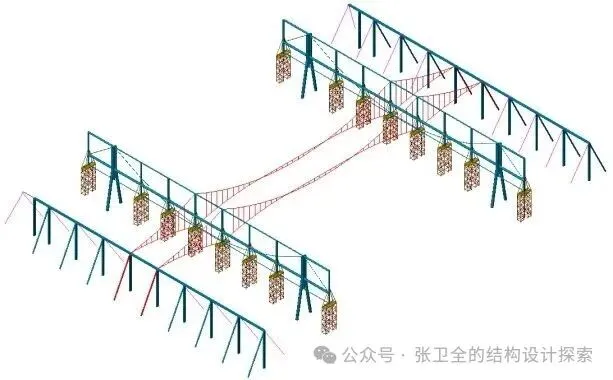

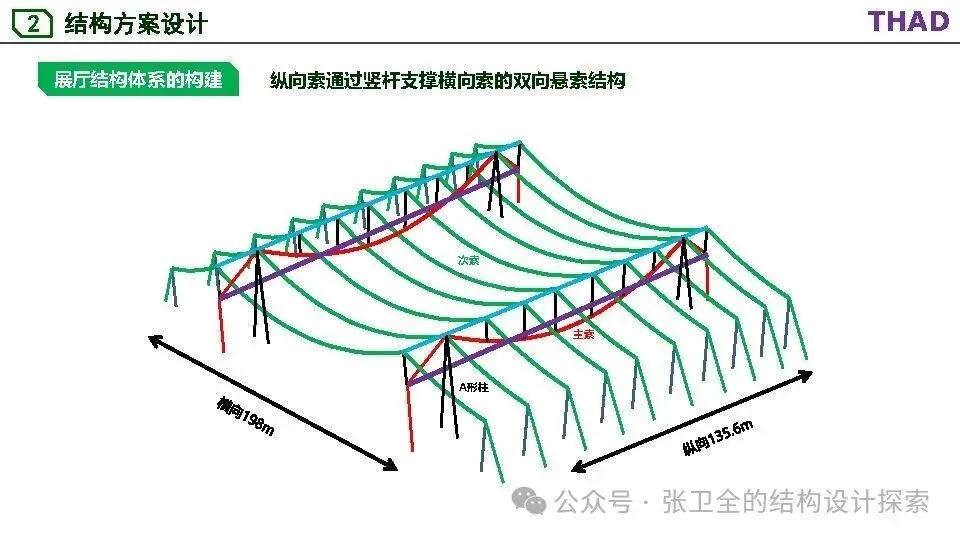

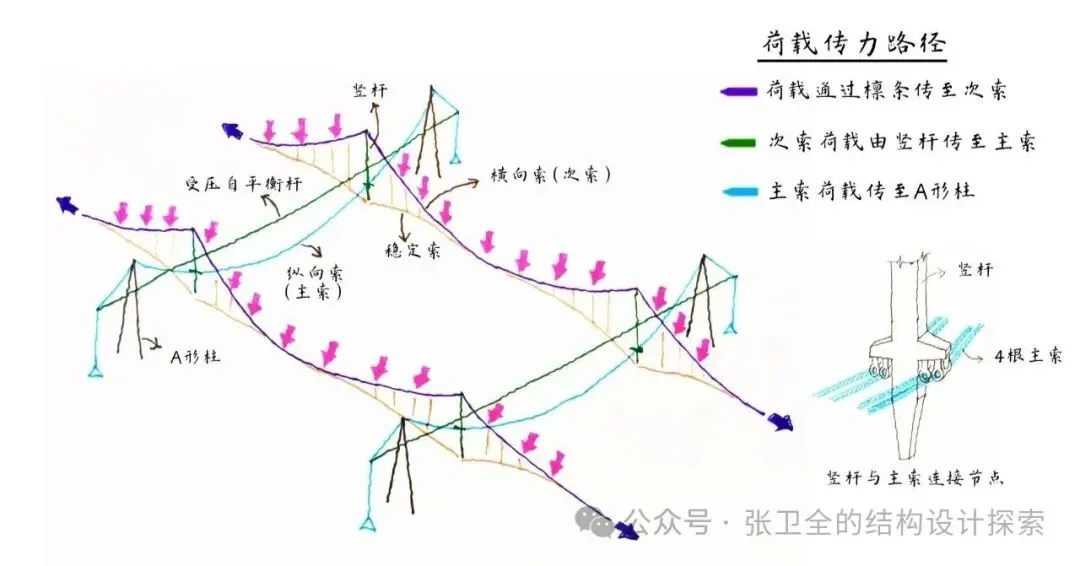

是目前世界上跨度最大且应该是唯一具有防连续倒塌能力的此类结构，采用“多榀横向索通过受压竖杆支撑于纵向索之上的双向正交悬索结构”，从建筑特点和特殊需求出发，基于力学原理的分析，建立概念性的结构方案，并通过大量细致的计算分析，逐步细化和实现这个结构，具有典型的从原理出发进行设计的过程。

来源：张卫全的结构设计探索

欧标、美标、澳标、国标的砼、钢结构节点设计软件，出英文计算书

YLP2020结构设计软件下载：YLP2020.com

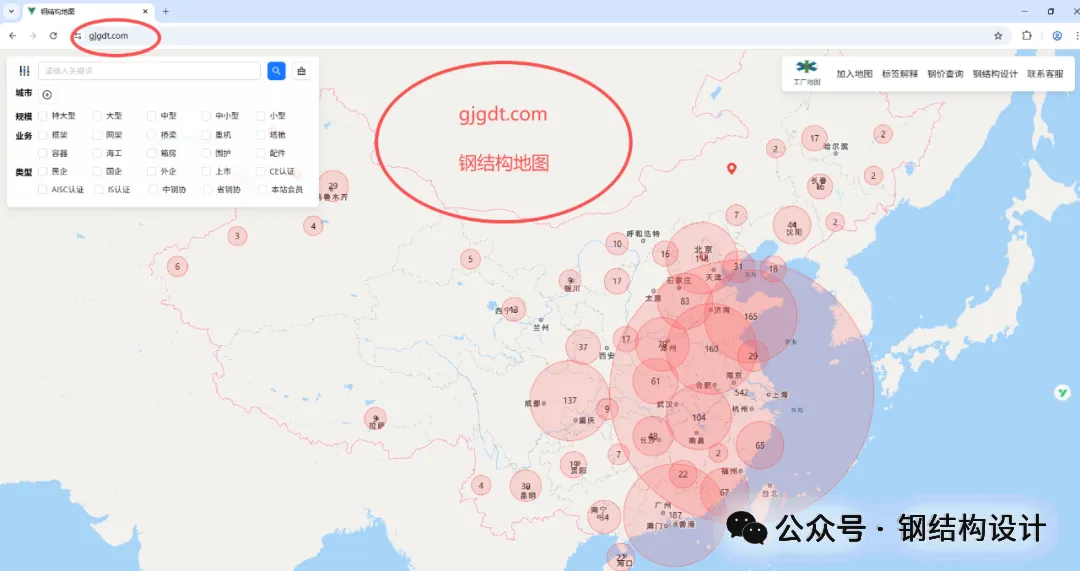

找钢构厂，就上 钢结构地图（这五个字首字母）：
